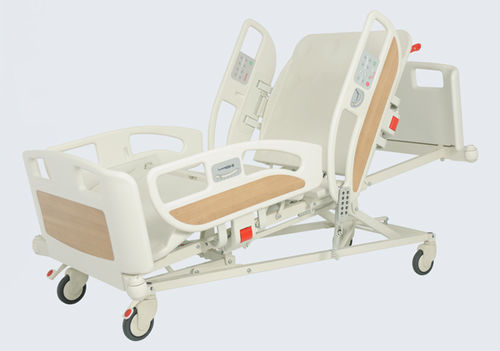

Hospital bed VIGOROUS 11SS

medicalelectricTrendelenburg

■ General hospital use medical and electrical bed. ■ Sections: Totaly 4 section as below. 1-Back rest. 2-Seat rest. 3-Thigh rest. 4-Foot rest. ■ Design: 1- 2 – 3 mm metal tube heavy duty metal construction 2- Without space between mattress and head board. 3- Stabil low bed scissor construction. 4- Epoxy panited metal construction after nano technology surface treatment which is easy to clean with disinfectants. 5- German Dewert brand motors. ■ Mattress Support type: 1-Back rest heavy duty steel grid, optional compact laminate with xray cassette holder. 2-Seat rest heavy duty steel grid. 3-Thigh rest heavy duty steel grid. 4-Foot rest heavy duty steel grid. ■ Movements: 1-Backrest movement by motor 0 to 68°. 2-Kneerest movement by motor 0 to 27°. 3-Height adjustment by motor from 42 cm to 77 cm. 4-Trendelenburg from 0 to 12°. 5-Anti trendelenburg from 0 to 12°. ■ Side rails: 4 parted plastic two pairs for each side. Strong heavy duty design. Easy to operate up and down. C2 right side,siderails in and outside dual control panel. C3 left side, siderails in and outside dual control panel. Side rails control are easy to clean and disinfect fl at surface and strong material. The side rails all spaces design according to European patient safety standart as EN 60601-2-52. The side rails cover the sleeping platform to prevent patient falling according to EN 60601-2-52. The side rails locks are safe when it is locked and testes according to EN 60601-2-52. ■ Bumpers: 4 soft toch corner bumpers to protect the bed and environments. ■ Head and foot boards: Plastic heavy duty blow molded easy removable panels. 20 different laminate color options at page 84.
