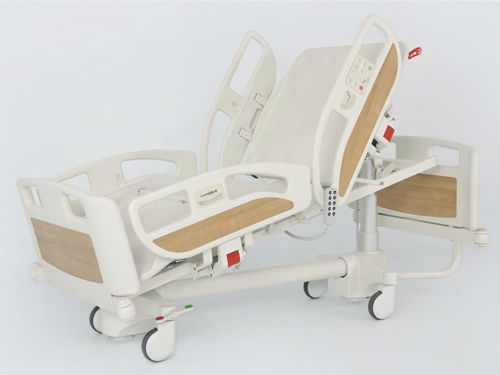

Medical bed VIGOROUS 10

electricheight-adjustableTrendelenburg

■ Easy to clean four-piece bed platform. ■ Height, trendelenburg,reverse trendelenburg, head and foot movements with the help of an electrical motor. ■ Head and foot platforms with automatic sliding system. ■ Back angle indication assembled on head rail. ■ Angle indication assembled on foot rail showing trendelenburg and reverse trendelenburg. ■ The easily mountable and demountable cap system designed of hygienic PE plastic is fi xed to the lower case from the head side; thus possible damage to the frame is avoided when the bed is converted to trendelenburg position. ■ Shock resistance plastic bumper wheels. ■ Metal components dyed with anti-corrosion electrostatic powder paint after being treated with phosphate. ■ Upper and lower points of lower case regions of the column motor connection regions are covered with PE plastic material in terms of hygiene and ease of cleaning. ■ Optional laminate color choice.(RLX) External dimension : 102 x 219 cm ■ Width outside side rails : 99 cm ■ Mattres platform : 89 x 195 cm ■ Bed extension : +20 cm ■ Recommended mattress dimension : 85 x 194 x 12 cm ■ Autoregression (Backrest / Legrest) : 8 cm / 4 cm ■ Safe Operating Load (Inc. Mattress and Accessories) : 230 kg ■ Weight : ~ 124 kg ■ Volume : 1,05 m Power Input 230 V AC 50 Hz Max 1 A Power Output 24 V DC Electrical Current Protection Class 1, Type B Liquid and Dust Protection IP54 – IP66
