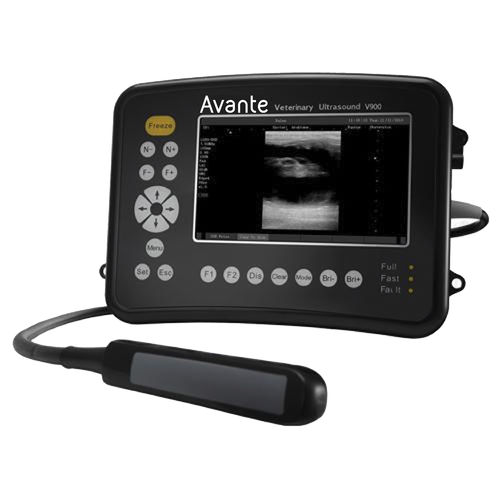

Portable veterinary ultrasound system V900

multipurposefor equinesB/W

Pseudo Colors 9 Rechargeable Built-in Battery 365 Frames Bidirectional Cine-loop Dimensions: 9.8” W x 3.94” L x 7.28” H, 5.5 lbs Abundant Software Package Professional Software Packages for Veterinary Use: Obstetrics: Canine - GW, EDCB (GSD, CRL, HD, BD) Feline - GW, EDCB (HD, BD) Sheep - GW, EDCB (CRL) Swine - GW, EDCB (HL, SL) Bovine - GW, EDCB (CRL, BBD, BTD, BUD) Equine - GW, EDCB (GSD, ERD, ESD, EED) Llama - GW, EDCB (BPD) General: Imaging Mode - B, B+B, B+M, M Gray Scale - 256 Display - 7" LCD Monitor Transducer Frequency - 2.0~10MHz Transducer connector - 1 (standard) Scanning depth (mm) - From 45 to 250 (depending on probes) System language - English/Spanish Imaging Process: Pre-processing - Edge enhancement, Near/far field adjustment, 4 focuses adjustment, frame correlation Post-processing - Gamma Correction, Left-right reverse, Up-down reverse, 4 levels zoom Functions: Cine loop - 365 frames bi-directional cine-loop Storage media - Built-in flash, External pen drive Storage - Min. 1000 frames permanent storage Body mark - 24 types Psuedo color - 9 Transducer Auto-detection Display: Data, week, time, transducer model, transducer position, transducer frequency, depth, focus position, body marks, frame rate, measurement values, gain, etc. Power supply: AC 100-240V 50/60 Hz and DC Dimensions: 250mm (W) x 100mm (L) x 185mm (H) =?8 in?(W) x 3.9 in?(L) x 7.3 in?(H) Net weight: 2.5Kg (5.5 lbs) Standard Configurations: V9 Main Unit 7" LCD Monitor One Transducer Connector One USB Port Two Carrying Straps One Lithium Battery One Anti-collision Master Case 365 Frames Bi-directional Cine Loop Min. 1000 Frames permanent storage Professional software packages
