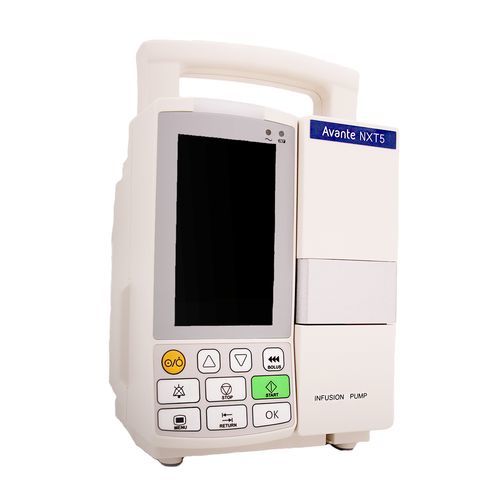

1-channel infusion pump NXT5

veterinaryfor animalsportable

The Avante NXT5 contains a sophisticated motor and dual detectors to guarantee infusion precision and stability. Intelligent pulse compensation technology and heating technology ensured the consistency of the long-time infusion rate. High precision pressure sensor detects down to 50mmHg within 1ms; an alarm will be triggered once blocking happens. Dual CPU monitors the whole infusion process in real-time. Built-in drip sensor to control fluids flux. Intelligent pulse compensation technology. Heating technology provides adequate temperature with over-temperature protection. 800 infusion records and last configuration memory. Built-in Lithium battery, over 8 hours working time after fully charged. Rate Mode, Drop Mode, and Time Mode for a wide range of applications. Patented anti-bolus system. 4" LCD display with large font. LED alarm light with a variety of audible and visual alarms. Ergonomic operation interface makes it easy to adjust and monitor the parameters to reduce errors in operation. Software adjusting function suited for any brand of infusion sets. Automatic light while door is open, easy to operate at night. Horizontal door clip to easily close and open the door. SPECIFICATIONS General Display: 6.85 x 4.96 x 8.46 in (174 x 126 x 215 mm) Power Supply: 11.1 V DC Battery: Built-in Lithium, over 8 hours on a full charge Infusion Modes: Rate Mode, Drop Mode, and Time Mode Accuracy: < ±3%
