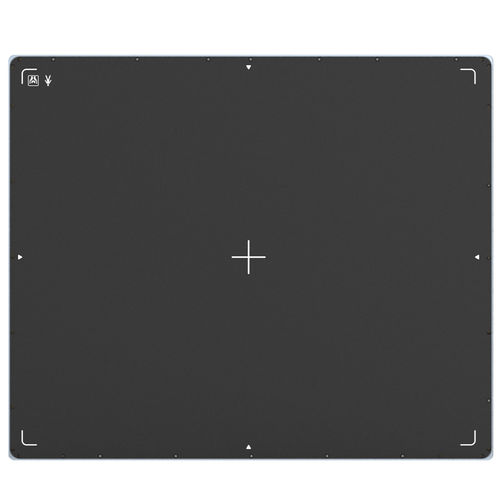

Multipurpose radiography flat panel detector EVS 3643Wwirelesswaterproof14 x 17
Add to favorites
Compare this product
Characteristics
- Applications
- for multipurpose radiography
- Options
- wireless, waterproof
- Dimensions (inches)
- 14 x 17
Description
Increased Dose Efficiency and Image Quality
High DQE / MTF Value
Ultimate Image sharpness with TRUVIEW®ART
Stable Wireless Performance
Wireless Charging System WPCS
Specifications
Technology a-Si TFT
Scintillator - Direct deposition Csl or GOS
Pixel Pitch 140 ㎛
Spatial Resolution 3.57 lp/㎜
Pixel Matrix 2560 x 3072 pixels
Image Preview Time ≤ 1 sec.(EWT at 0.5sec.)
Data Interface (Wired) Gigabit Ethernet (USB C-type PD to LAN)
Dimensions 38.6 ㎝ × 46.0 ㎝ × 1.55 ㎝
Weight 3.0 kg
A/D Conversion 16 bits
X-ray Voltage Range 40 - 150 kVp
Operating Environment
Temp. Operating 10°C to 35°C
Humidity (Non-condensing) 10% to 90 % RH
