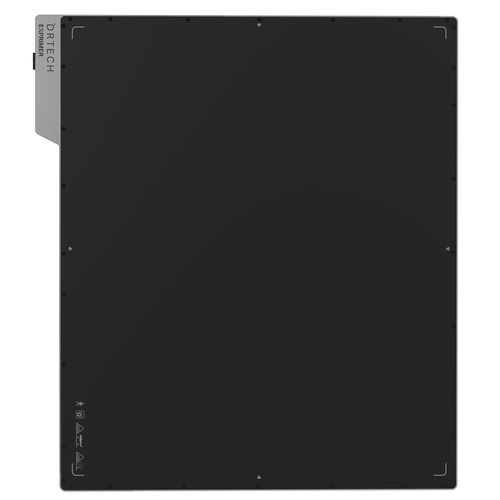

Multipurpose radiography flat panel detector EVS 3643A

14 x 17

Increased Dose Efficiency and Image Quality High DQE / MTF Value Ultimate Image sharpness with TRUVIEW®ART Specifications Technology a-Si TFT Scintillator - Direct deposition Csl or GOS Pixel Pitch 140 ㎛ Spatial Resolution 3.57 lp/㎜ Pixel Matrix 2560 x 3072 pixels Image Acquisition Time ~ 2.5 sec Image Preview Time ≤ 1 sec.(EWT at 0.5sec.) Data Interface (Wired) Gigabit Ethernet (Single LAN cable) Dimensions 38.6㎝ × 46.0 ㎝ × 1.55㎝ Weight 3.5 kg A/D Conversion 16 bits X-ray Voltage Range 40 - 150 kVp Operating Environment Temp. Operating 10°C to 35°C Humidity (non-condensing) 10% to 90 % RH
