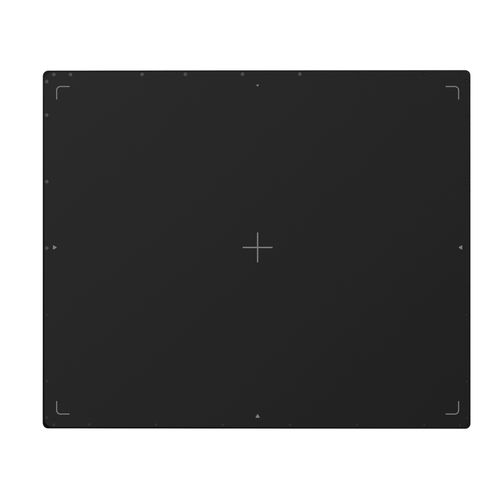

Multipurpose radiography flat panel detector EVS 3643WPwirelesswaterproof14 x 17
Add to favorites
Compare this product
Characteristics
- Applications
- for multipurpose radiography
- Options
- wireless, waterproof
- Dimensions (inches)
- 14 x 17
Description
Minimum Dose · Maximum Diagnostic Accuracy by QX Platform
High DQE / MTF Value
Ultimate Image sharpness with TRUVIEW®ART
DEPAI™ AI Imaging Processing
Wireless Charging System WPCS
Powerful Wireless Performance
Specifications
Technology IGZO TFT
Scintillator Csl
Pixel Pitch 140 ㎛
Spatial Resolution 3.60 lp/㎜
Pixel Matrix 2560 x 3072 pixels
Data Interface (Wired) Gigabit Ethernet (USB C-type) (Wireless) IEEE 802.11n (2.4, 5 GHz)
Dimensions 38.5 ㎝ × 46.0 ㎝ × 1.55㎝
Weight 2.9 kg
A/D Conversion 16 bits
X-ray Voltage Range 40 - 150 kVp
Operating Environment
Temp. Operating 10°C to 35°C
Humidity (non-condensing) 10% to 90 % RH
