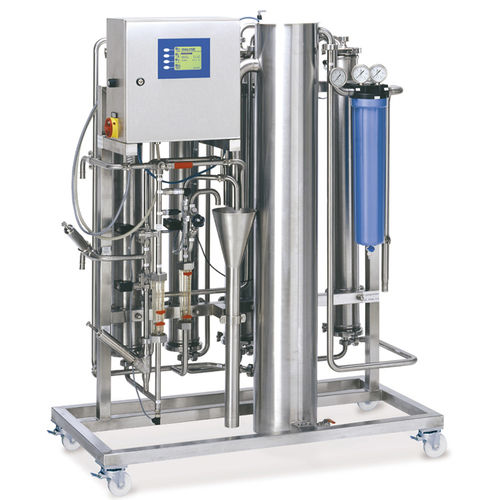

Hemodialysis water treatment plant MODULA S

reverse osmosis

The modula S grants optimal safety and reliability. Due to economical construction and smoothness, the system can be used near treatment stations. The development goal of the modula S was to attain a well balanced high economical and technical standard. The high level of easy serviceability and the reduced water consumption – achieved by the combined conductivity / temperature control – minimizes operating costs. Permeate capacity of 350 – 1,650 l/h at 10°C water temperature Water saving technology by combined conductivity and temperature control Retention of inorganic substances: max. 99% Recovery rate: up to 85% Conformity declared with directive 93/42/EEC Continuous monitoring of conductivity, pressure, temperature and permeate flow Complete internal surface of passivated stainless steel piping with clamp connectors Water-cooled submersible pump in break tank Energy-saving polyamide membranes for maximum permeate yield at low pressure Emergency operation at breakdown of the control board
