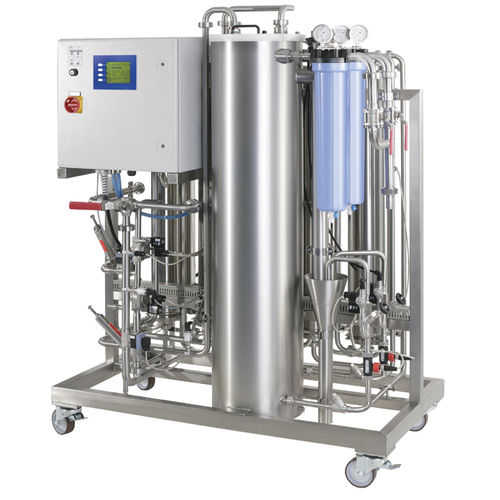

Hemodialysis water treatment plant MODULA S-XL

reverse osmosis

The redundant configuration of the modula S-XL ensures high permeate capacity and highest operational safety and reliability. The modula S-XL can be configured optionally in two modes: Fully redundant – one membrane package ensures the complete supply of dialysis ECOMODE – both membrane packages are communicating and adjust the permeate capacity to the respective requirement Those intelligent settings of the water-cooled submersible pumps provides a maximum economy at minimized noise. Permeat capacity at 10 °C water temperature Fully redundant: 700 – 1,650 l/h ECOMODE: 1,400 – 3,300 l/h Water saving technology by combined conductivity and temperature control Retention of inorganic substances: max. 99% Recovery rate: up to 85% Conformity declared with directive 93/42/EEC Automatic flushing mode in redundant operation of the standby-membranes Programmable pre-flushing mode permeate to drain Complete internal surface of passivated stainless steel piping with clamp connectors Energy-saving polyamide membranes for maximum permeate yield at low pressure Emergency operation at breakdown of the control board
