Disinfection system HDS

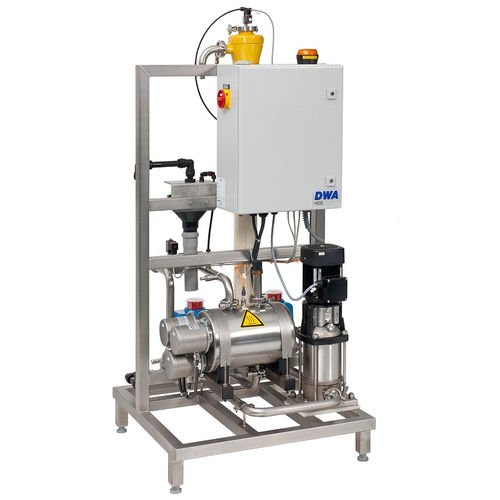

The new HDS heat disinfection system provides an efficient and flexible facility for heat-disinfection of the permeate ring main. The combination of our heat disinfection and the optional Ultra-filtration module provides excellent microbial conditions for the ring main. Our dialysis machines and connection hoses can optionally be installed with integrated heat cleaning. The ultrapure water is recirculated into the distribution system and back through the ultra-filter to ensure that the distribution system is kept full with only the highest quality water. 18 kW heating power Thermal disinfection up to 85 °C Maximal length of ring main 300 m Compatible with all DWA Reverse Osmosis Systems Conformity declared with directive 93/42/EEC Procedure of ultrafiltration of permeate Long lifetime of the ultra-filter by cross-flow operation Possibility of integrated heat disinfection of the dialysis machines (approx. 150 litre hot permeate per hour)
