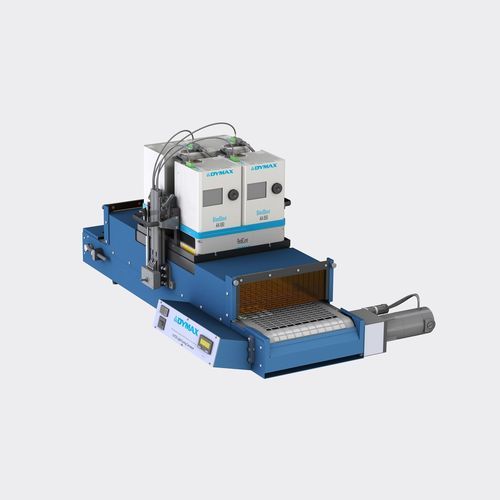

Belt conveyor UVCS AX-550 V2.0

medical

Dymax UVCS bench-top conveyor systems are designed for fast curing of adhesives, coatings, and inks that react in the UVA and/or visible spectral ranges. The conveyors can be outfitted with one of three different wavelength BlueWave® AX-550 V2.0 LED flood lamps (365 nm, 385 nm, 405 nm) and can accommodate up to four emitters. If two emitters are used, they can be pointed side-by-side or front-to-back for additional process flexibility. All UVCS conveyors have adjustable belt speeds of 1 to 32 fpm, as well as adjustable lamp-to-belt distance to address a variety of application requirements. When combined, the UVCS conveyors' consistent intensity, fast curing, and adjustable line speeds create an optimized LED light-curing process that enables high throughput. UVCS-series conveyors can be outfitted with one, two, or four BlueWave® AX-550 V2.0 LED flood emitters. If two emitters are used, they can be either center mounted (CM) or mounted full width (FW). BlueWave AX-550 V2.0 LED flood emitters provide high-intensity curing energy over a 5 in x 5 in (12.7 cm x 12.7 cm) curing area. 365 nm, 385 nm, and 405 nm wavelength configurations are available. The selection of the correct wavelength emitter will depend on the material being used and other application requirements. BlueWave AX-550 V2.0 LED flood emitters offer high uniformity when multiple emitters are assembled next to each other, making them ideal for conveyor applications where a consistent cure across the entire substrate is important. LED vs. Broad-Spectrum Systems
