Microscope camera module e-CAM221_CUMI462_MOD

medicaldigitalHD

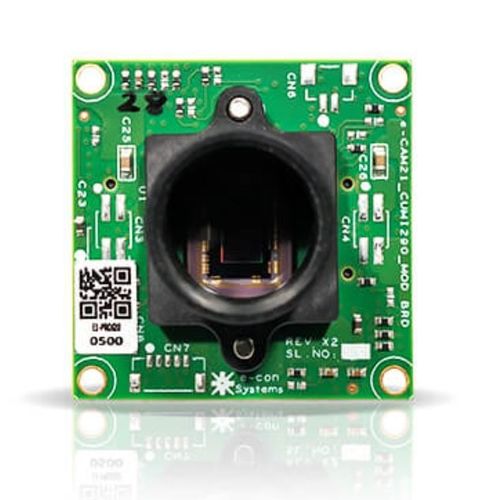

e-CAM221_CUMI462_MOD is a Full HD MIPI ultra low light camera module. This MIPI camera module is based on a SONY® STARVIS™ IMX462LQR sensor that ensures superior near-infrared performance. The high sensitivity of this Full HD camera module helps to capture images in as extremely low lighting conditions as 0 lux, which makes it suitable for night vision applications and medical microscopes. e-CAM221_CUMI462_MOD has an inbuilt Image Signal Processor (ISP) which performs auto exposure and auto white balance functions. This fixed focus camera module has an M12 lens holder which allows customers to choose and use the lens according to their requirement. Full HD RAW RGB camera based on Sony® Starvis™ IMX462 CMOS image sensor Ultra low light sensitivity Superior near-infrared performance 1/2.8" Optical Form-factor MIPI CSI-2 video output On-board microcontroller to interface with sensor through I2C interface Supports High Conversion Gain (HCG) and Low Conversion Gain (LCG) modes S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements RGB RAW 10-bit/12-bit data per pixel Operating Temperature Range: -30°C to 85°C Typical power consumption: 900 mW Small form-factor pluggable camera module with S-mount lens holder 30mm x 30mm size. Height depends on the Lens Compliance FCC RoHS
