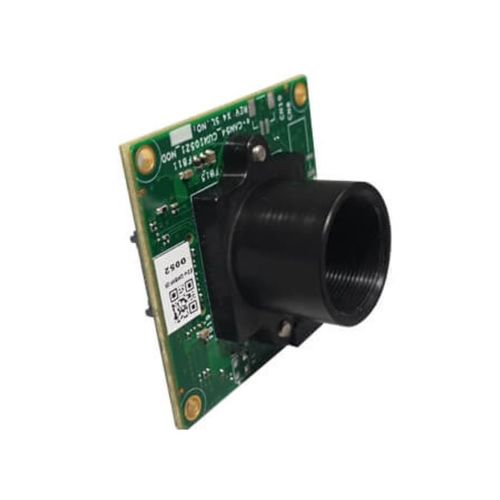

Microscope camera module e-CAM55_CUMI0521_MOD

medicaldigitalHD

e-CAM55_CUMI0521_MOD is a small form factor, 5MP camera module based on AR0521 CMOS image sensor from ON Semiconductor® has a dedicated, high-performance Image Signal Processor chip (ISP) on-board that performs all the Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images and video. 1/2.5" Optical Form-factor Uncompressed UYVY streaming S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements External Trigger input Maximum Image Transfer Rate : Uncompressed UYVY Output Format Power consumption of Camera Module Board : 1.65W (Approx) Temperature Range Operation - -30° to 70° C Small form-factor pluggable camera module with S-mount lens holder 30mm x 30mm size 2x 20-pin SMT Connectors on two sides of the camera module for better mechanical stability Compliance FCC RoHS
