Microscope camera module e-CAM23_CUXVR

medicalophthalmologydigital

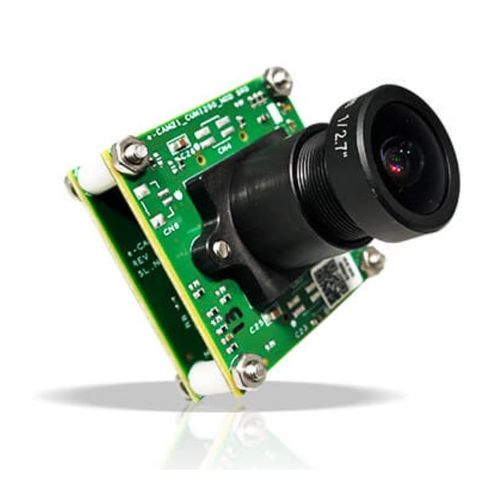

e-CAM23_CUXVR is a Full HD MIPI camera for NVIDIA® Jetson AGX Xavier™ developer kit. This camera kit contains e-CAM221_CUMI462_MOD, an ultra-low light MIPI camera module based on the SONY® STARVIS™ IMX462 sensor that ensures superior near-infrared performance. The high sensitivity of this Full HD camera helps to capture images in as extreme low lighting conditions as 0 lux, which makes it suitable for night vision applications and medical microscopes. This camera uses MIPI interface to connect with NVIDIA® Jetson AGX Xavier™ developer kit and is capable of streaming both HD and full HD at 120 fps in asynchronous mode Houses e-CAM221_CUMI462_MOD - Full HD Sony Starvis™ Camera Module with S-mount lens holder High-speed 4-lane MIPI CSI-2 interface product variants to connect with the CPU Plugs in to NVIDIA® Jetson AGX Xavier™ development kit Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing Operating Voltage : 3.3V +/- 5% Operating Temperature Range : -30°C to 85°C Typical power consumption: 1.940 W Customized LibArgus application for multicamera streaming, image capture and video recording Gstreamer-1.0 support for video recording and network streaming Base Board size ( L x W ): 75.03 mm x 40.69 mm Lightweight, versatile, and portable multi-board solution Adaptor board size in mm (l x b) : 30 x 30 (Height depends on the lens) Micro-Coaxial Cable Length : 30 cm (1m *) RoHS compliant
