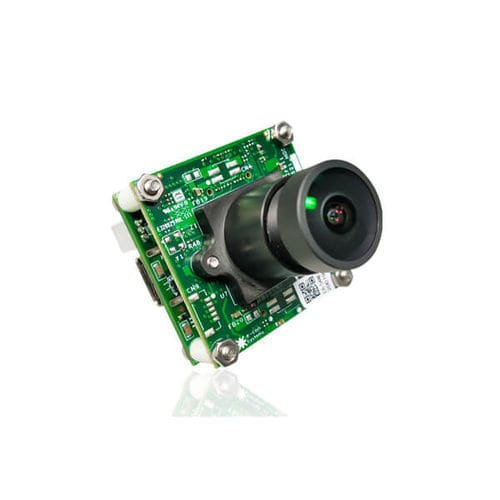

Ophthalmology camera module See3CAM_CU55

digitalfull HDCMOS

See3CAM_CU55 is a 5MP USB 3.1 Gen 1 UVC Color Camera with S-mount (also known as M12 board lens) lens holder. It is a two-board solution containing camera sensor board based on 1/2.5" AR0521 image sensor from onsemi® and USB 3.1 Gen 1 Interface board. The powerful on-board Image Signal Processor (ISP) brings out the best image quality of this 2.2 micron pixel 5MP AR0521 CMOS image sensor making it ideal for next generation of high resolution surveillance, biomedical instruments and biometric authentication applications. The See3CAM_CU55 is a UVC-compliant USB 3.1 Gen 1 SuperSpeed Camera that is also backward compatible with USB 2.0 host ports and does not require any special camera drivers to be installed on the host PC. When connected to USB 2.0 host ports, the See3CAM_CU55 camera supports all the resolutions and at lower frame rates. Fixed Focus On-board high performance ISP Output format: Uncompressed UYVY and Compressed MJPEG Frame Rate: Streams Full HD at 60 fps & 5MP at 60 fps Supported OS: Windows 10/8.1, Linux, Android * and MAC ** USB 3.1 Gen 1 device with Type-C reversible interface connector UVC compliant: No additional drivers required. Also backward compatible with USB 2.0 hosts 10 pin GPIO Header (only for without Enclosure) External Hardware Trigger Input (only for without Enclosure) Unique ID for each camera Operating Voltage: 5V +/- 5% Operating Temperature Range: Without Enclosure: -30°C to 70°C
