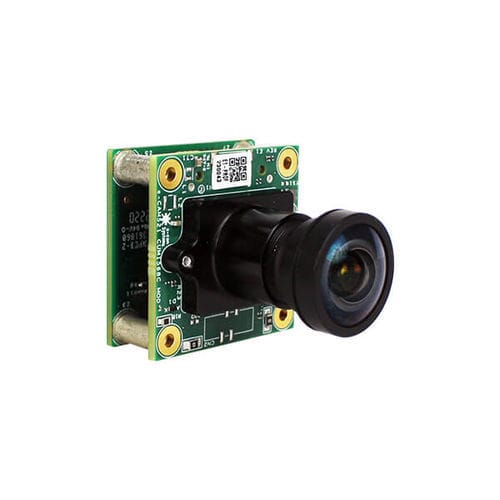

Medical camera module e-CAM56_CUOAGX

diagnosticdigitalfull HD

IMX568 sensor Global Shutter High Sensitivity Multi-ROI capture with high frame rate upto 1164 fps* Plugs into NVIDIA® Jetson AGX Orin developer kit (upto 4 cameras) External Trigger support for synchronized multi-camera streaming Uses NVIDIA® ISP for image processing e-CAM56_CUOAGX is a 5 MP MIPI CSI-2 multi-camera - powered by a 1/1.8" Sony Pregius S IMX568 back-side illuminated image sensor. It is designed to seamlessly integrate with the NVIDIA® Jetson AGX Orin™ development kit. This camera excels in delivering best-in-class image output in uncompressed YUV format, featuring a fixed focus capability alongside its high sensitivity. With its global shutter features, e-CAM56_CUOAGX ensures distortion-free image capture of fast-moving objects. Hence, it is ideal for applications like In-Vitro Diagnostic devices, Smart Traffic (ITS, ANPR), Industrial Automation, Drones and Robotic Arms. It can also connect up to four camera modules and offers a standard M12 lens holder with customized optics or lenses. Key features: Frame Rate: 5MP @ 79fps, Full HD @ 142fps, HD @ 202fps Output Format: RGB RAW 10-bit/12-bit High-speed MIPI CSI-2 interface Standard M12 lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design Interface: Interface: MIPI CSI-2 Connector: Micro coaxial cable with I-PEX (CN2) connector Cable Length: 30cm Sensor features: Sensor: IMX568 from Sony® Pregius S Focus Type: Fixed focus Sensor Resolution: 5.1MP Chroma: Color Shutter Type: Global Shutter Optical Format: 1/1.8" Output Format: RGB RAW 10-bit/12-bit Pixel Size: 2.74 μm x 2.74 μm
