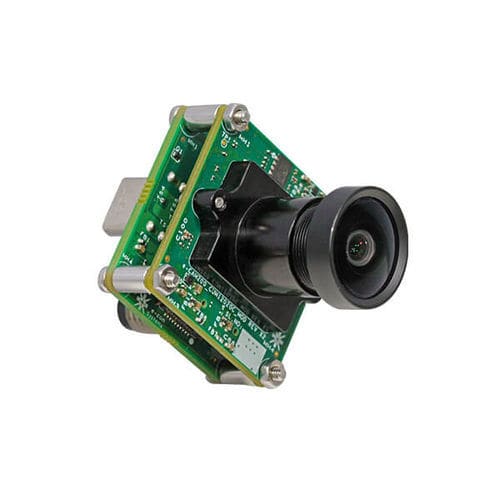

Ophthalmology camera module See3CAM_CU200

digital1920 x 1080CMOS

Fixed Focus On-board high performance ISP Lowlight and NIR Excellence GRR - Reduces the rolling shutter artifacts See3CAM_CU200 is a 20 MP (5K) camera based on a 1/1.8" AR2020 CMOS image sensor with advanced 1.4μm pixel BSI technology from onsemi's Hyperlux LP product family with the high performance in-built ISP. AR2020 USB 3.2 Gen 1 superspeed camera features with reversible plug-and-play Type-C interface. This UVC-compliant See3CAM_CU200 camera supports 5120 x 3840 @8fps and 1920 x 1080 @90fps. Video streaming through UVC is possible without any special drivers. It has an S-mount (M12) lens holder, allowing customers to choose and use the lens according to their requirements. Interface: Connector: Type-C reversible interface connector UVC Compliant - no additional drivers required Backward compatible with USB 2.0 hosts Module Features: Sensor: AR2020 from onsemi® Focus Type: Fixed focus Chroma: Color Shutter Type: Electronic Rolling Shutter with global reset mode # Optical Format: 1/1.8" Output Format: RAW Bayer Pixel Size: 1.4 μm x 1.4 μm Sensor Active Area: 5120 (H) x 3840 (V) Holder: M12 (S-Mount) FOV: 118.81°(D), 90.28°(H), 65.98°(V) (with the lens provided by e-con)
