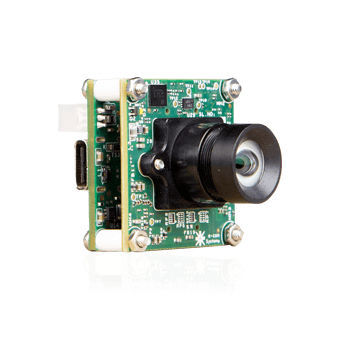

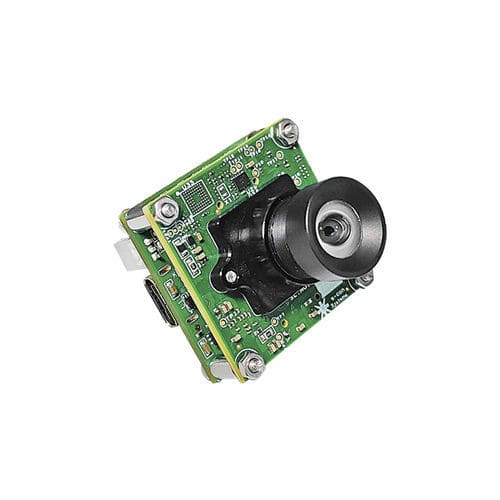

Patient monitoring camera module See3CAM_CU83

digitalfull HD4K

Streams RGB-IR frames simultaneously Sensor: 4K RGB-IR 4K images in both visible and IR lighting conditions On-board high performance ISP Wake-On-Motion (WoM) / motion detection sensor Overview See3CAM_CU83 is a 4K RGB-IR USB 3.2 Gen 1 superspeed camera with a reversible plug-and-play Type-C interface. It extracts images in both RGB and IR spectrums easily without having to endure color corruption or requiring a mechanical switch. This ensures high imaging performance in day and night conditions for seamless 24X7 image and video capture. This UVC-compliant RGB IR camera streams video data of 4K @15fps and Full HD @30fps. Also, this 4K camera can capture images at high frame rates without any motion blur and its IR sensitivity helps to produce excellent image quality even in the Near Infrared (NIR) regions. Key features: Framerate: Refer pdfDatasheet for complete frame rate details. Output format: RGB - UYVY & IR - UYVY Supported OS: Windows, Linux, Android * and MAC ** Unique ID for each camera Lightweight, versatile, and portable design Interface: Interface: USB 3.2 Gen 1 device Connector: Type-C reversible interface connector UVC Compliant - no additional drivers required Backward compatible with USB 2.0 hosts Module features: Sensor: AR0830 from onsemi® Focus Type: Fixed focus Chroma: Color, NIR Shutter type: Electronic Rolling Shutter Optical Format: 1/2.9" Output Format: Uncompressed UYVY, Y16 Pixel size: 1.4 μm x 1.4 μm Back Side Illuminated (BSI) Sensor Active Area: 3840 (H) x 2160 (V) Array Size: 3840 (H) x 2160 (V) SNR: 39.9dB Dynamic Range: 73dB Holder: M12 (S-Mount) FOV: TBD
