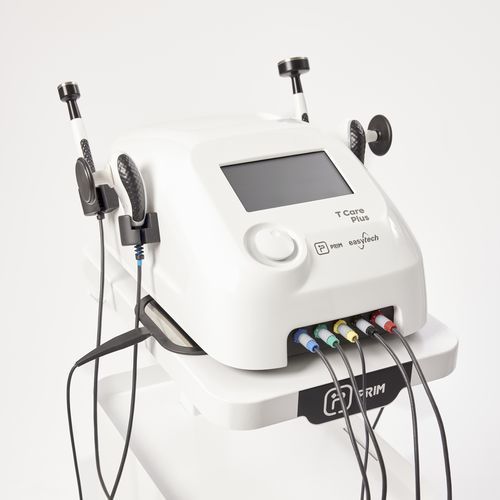

Tecar therapy unit T Care Plus

trolley-mounted

Product overview
T Care Plus is a device for Tecar Therapy, an instrumental physical therapy technique that uses high-frequency currents to stimulate the body’s natural healing processes. Energy penetrates deep into tissues to generate internal heat, activate microcirculation, reduce inflammation and pain, and support cellular regeneration.

Key features

• 4 operating frequencies: 420 - 500 - 720 - 1000 kHz
• Continuous or pulsed energy delivery modes
• Measurement and indication of energy transferred to tissues
• Continuously adjustable power up to 300 W – 400 VA
• Rotary knob for power adjustment and start/stop control
• New handpieces for control and comfort (capacitive, resistive, bipolar and intracavitary variants available in kits)
• New software with extended possibilities and customization
• Patient safety button to stop treatment if required

How it works
T Care Plus delivers high-frequency currents that generate controlled internal heating in target tissues. The induced thermal and bioelectric effects increase microcirculation, reduce inflammatory response and pain, and stimulate cellular repair mechanisms. The device provides thermal control and measurement functions for consistent, targeted clinical treatments.

Regulatory status
T Care Plus is a Class IIb medical device compliant with EU Regulation 2017/745 (MDR).

Basic configuration
The basic configuration includes two handpieces (one capacitive and one resistive) with interchangeable electrodes of various sizes, a flexible return plate, several adhesive return plates and a patient-accessible safety stop button. Dedicated kits can be added to address specific clinical areas.

Kits and intended therapeutic use

• Musculoskeletal Pro Physiotherapy Kit: enables dynamic treatments (with exercise) and use with shaped instruments (AMT) to combine focused deep energy delivery with manual therapy. Therapeutic goals:
  • Eliminate pain
  • Accelerate healing
  • Restore mobility
• Dermatofunctional Physiotherapy Kit: uses bipolar handpieces for more superficial, targeted treatments of the integumentary layers. Therapeutic goals:
  • Improve skin elasticity
  • Activate cellular metabolism
  • Promote drainage
  • Reorganise collagen
• Urogynecological Physiotherapy Kit: includes two intracavitary probes with temperature control for safe, comprehensive pelvic work. Therapeutic goals:
  • Restore muscle tone
  • Reduce inflammation
  • Rebalance cellular metabolism

Included / optional components

• Capacitive and resistive handpieces (basic)
• Interchangeable electrodes in multiple sizes
• Flexible return plate and adhesive return plates
• Temperature-controlled intracavitary probes (urogynecological kit)
• Bipolar handpieces (dermatofunctional kit)

Safety & controls
Continuous power adjustment via rotary knob, start/stop control, display and measurement of energy transferred to tissues, thermal control for probes, and a patient-accessible safety stop button.

Technical specifications

• Model: T Care Plus
• Brand: Easytech
• Device class: IIb (EU 2017/745 - MDR)
• Operating frequencies: 420 kHz, 500 kHz, 720 kHz, 1000 kHz
• Modes: Continuous and pulsed energy delivery
• Measurement: Indication of energy transferred to tissues
• Power: Continuously adjustable up to 300 W – 400 VA
• Control: Rotary knob for power adjustment and start/stop
• Handpieces: Capacitive, resistive, bipolar, intracavitary (kits)
• Return plate: Flexible return plate + adhesive return plates
• Electrodes: Interchangeable electrodes of various sizes
• Safety: Patient-accessible safety stop button
• Temperature control: Intracavitary probes with temperature measurement (urogynecological kit)
• Kits available: Musculoskeletal Pro, Dermatofunctional, Urogynecological
