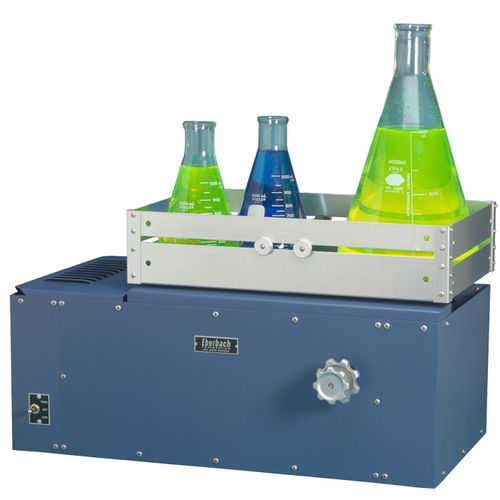

Reciprocating laboratory shaker E6005

analogbenchtop

Explosion Proof Reciprocal Shaker The Explosion proof Mid Range Reciprocal Shaker E6005 is a variable speed shaker that oscillates at 80-240 osc/min (speed variation +/- 5%. ). For general purpose shaking in hazardous locations electrically rated: Class 1 Group D, Class 2, Groups F and G. Operates in a space 33 1/2 W x 20" D. The 1/6 HP explosion proof motor drives the same shaker mechanism as the model E6000. The explosion proof motor must be connected to an explosion proof line at the point of installation. Shaker is electrically explosion proof rated only when wired in accordance with Local Electrical Code. Stroke is fixed at 1 1/2". Maximum load is 50 lbs. Motor is supplied with power leads through a conduit box, but without switch, cord or carrier plate. Please note: This unit is electrically explosion proof only. The final installation of the shaker must be performed by an electrician to ensure adherence to local explosion proof codes. Eberbach Explosion Proof Products are manufactured with certified components and wired by third party certified electrical engineers. Hazardous location certification documentation costs are additional. Please contact us for more information. Specifications: Speed: 80 - 240 osc/min Stroke: 1.5 in Maximum Capacity: 50 lbs Controls: Manual Electrical: 115 or 230V @ 50/60hz Explosion Proof Electrical Rating: Class 1 Group D, Class 2, Groups F and G Dimensions: 24.5 x 13.5 x 10 in Weight: 88 lbs
