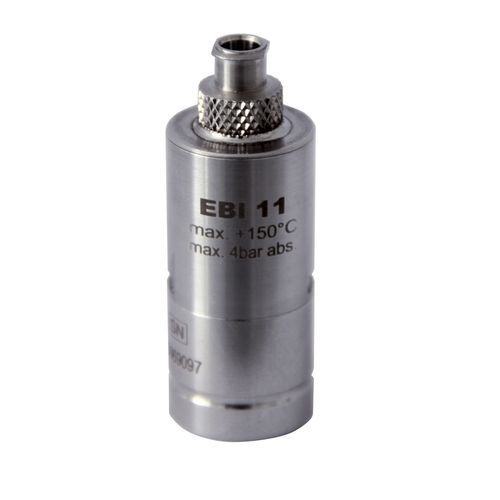

Temperature data-logger EBI 11-P111

pressureuniversallaboratory

Miniature pressure data logger for measuring the temperature-compensated absolute pressure during validation with small sterilizers and cassette autoclaves. The data logger can also be used in RDGs as well as in the Sirona DAC Universal and Melag Careclave. With its Luer lock connection, it can be used universally. Benefits: • small size • large measuring range • wireless measurement • connectable to Luerlock • high accuracy Applications: • process validation with DAC Universal • process validation with Careclave • process validation with endoscope-dummy, Spypach • F0 Value calculation Data memory 2 x 7.500 measurement values Sensor Pt 1000 Weight Approx. 45 g Accuracy ± 15 mbar (0 mbar...4000 mbar ) ± 20 mbar (4000 mbar...10000 mbar) Protection class IP68 Dimensions ø 16,5 mm x 47 mm Resolution 1 mbar Certificate Factory calibration certificate Measured variables Pressure Intervall 1s...24h Battery 2 x 3V Measuring range 1 mbar...10.000 mbar
