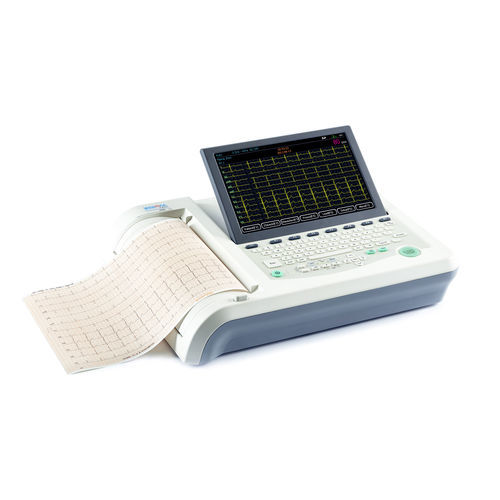

Resting electrocardiograph EM-1201A

12-channeldigitalwith printer

Simple and convenient operation, User friendly design, to bring more comfortable operating experience to medical staff Large Foldable LCD Display, clear and intuitive 10 inch TFT color display with 800×480 resolution, Background with grid, 12 leads ECG can be displayed on the same screen Built-in Lithium Battery, Large Storage Capacity Built-in rechargeable lithium high capacity battery, Local internal memory up to 1000 ECGs Ergonomic Design Full alphanumeric keyboard with shortcut keys, efficient in operation, Portable handle, easy to carry Support both Roll and Z-fold paper Built-in high resolution thermal printer, support roll and Z-fold paper, A4 printouts on internal or external printer* Technical Specitication Sampling rate: 32000sps/channel, A/D Converter: 24bits Frequency response: 0.01 Hz～350 Hz CMRR: ≥110 dB（AC Filter off）, ≥120 dB（AC Filter on） DC offset voltage: >±980mV Input impedance: ≥100MΩ Software Features Simultaneous 12 leads ECG acquisition and display Automatic ECG measurements and interpretation Supports pacemaker detection Comprehensive file management system to query, delete and edit patient data Supports auto, manual and rhythm mode Supports triggered sample mode to start recording once arrhythmia are detected Seamless Connectivity Multiple format reports export, such as PDF, JPG, BMP ,EM-XML, SCP*, DICOM, FDA-XML* Data access with HIS/ PACS/ EMR system based on FTP* / DICOM* standard protocol Patient information can be retrieved from the worklist*
