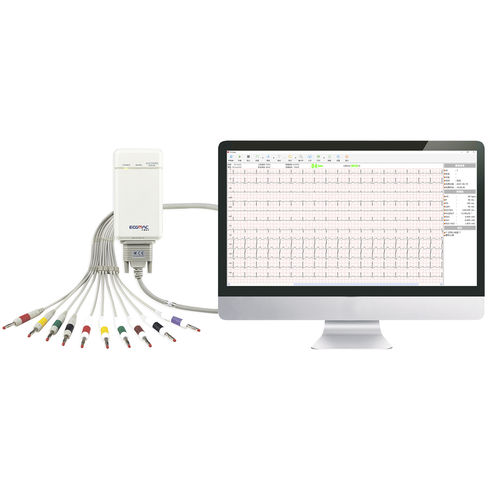

Resting electrocardiograph PE-1201A

12-channelcomputer-basedUSB

Sampling rate: 32000sps/channel Frequency response: 0.01 Hz～350 Hz A/D Converter: 24bits CMRR: ≥110 dB（AC Filter off）, ≥120 dB（AC Filter on） DC offset voltage: >±900mV Input impedance: ≥100MΩ Time constant :≥5s Product Features Supports pacemaker detection Multi- format reports export, such as PDF/ JPG/ BMP/ SCP * / DICOM/ FDA-XML * / EM-XML Data access with HIS/ EMR/ PACS based on FTP/ DICOM protocol Support LA, RA lead limb correction, effectively reduce secondary acquisition caused by misuse Comprehensive filters to ensure no waveform distortion while eliminating interference Automatic ECG measurements and interpretation Compatible with Windows operating system Patient information can be retrieved from the worklist* Multiple Format Reports Export Multi- format reports export, such as PDF/ JPG/ BMP/ SCP* / DICOM/ FDA-XML*/ EM-XML Data access with HIS/EMR/PACS based on FTP/DICOM protocol
