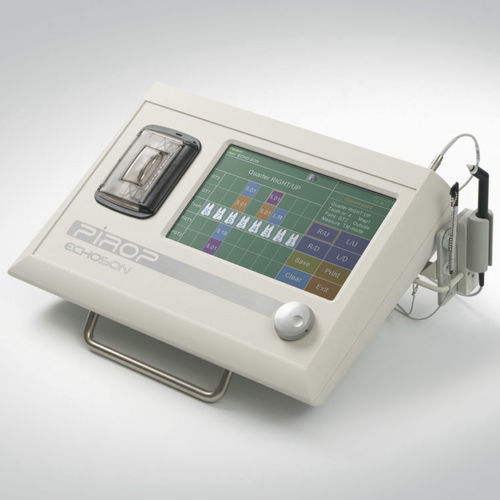

Ultrasound ophthalmic biometer PIROP G-scan

tabletop

State-of-the-art ultrasonic device PIROP in intraoral application for biometry soft tissue thickness in the periodontium (Gingival Thickness) – GUM/Gingiva – Periodontal Soft Tissue biometrics. PIROP user’s interface based on touch screen technology makes operation easy and user-friendly. Undoubted advantages of using the Pirop device to measure the mucosa thickness are fast measurement, very high accuracy and a complete noninvasiveness during an ultrasonic examination. In-point, automatic measurement with automatic averaging and calculation of standard deviation Non-invasive thickness measurement via contact method A-scan and unique time-motion measurement modes for quick estimation of the thickness for the region of interest Sophisticated algorithm for the accuracy improvement High frequency measurement cycles Velocity range – 1400-2000 m/s Measurement range 0,25 ÷ 6 mm Axial resolution 0.01 mm (10 μm) Memory for 256 measuring points 8 predefined maps of periodontal areas – diagrams to select the dentition quadrant, tooth and measurement point 32 cross sections of the examined dento-gingival unit
