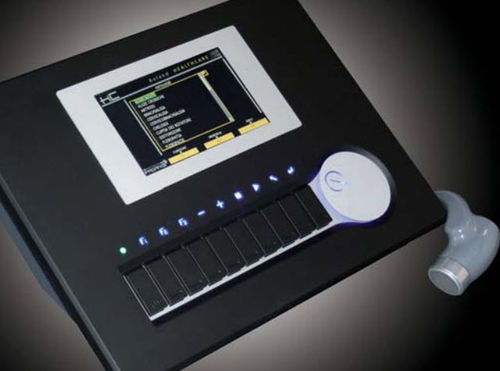

Electric stimulator HC SOUNDSTIM

ultrasound diathermy unittabletopIF

HC SOUNDSTIM allows to select both single generator (ultrasound or electrotherapy) and also to combine the two generators for mixing ultrasound to electrotherapy. Mainly, the combination is made for performing pain relief and anti-inflammatory applications and it is generally more effective than the single technique both for reducing application time and granting better results. Compact dimensions along with the wide versatility of the combined device, make HC SOUNDSTIM a very special device, which is granting two electrotherapy output channels, full set of mid and low frequency currents, 1-3 MHz ultrasound device, for single and combined frequencies. Technical features Ultrasound ■ Frequency: 1-3 MHz ■ Emission: continuous and pulsed (from 20 to 80%) ■ Modulation: 1 to 200 Hz ■ 5cm2 multifrequency head for single and combined use ■ Timer max. 30 min ■ Intensity max: 3 W cm2 ■ Real-time attesting no-coupling between patient’s tissue and us head Elettrotherapy ■ Outputs: n. 2 ■ Intensity max.: 76,5 mA Low frequency: ■ Galvanic, interrupted galvanic, diadynamics (50-100 Hz, CP, LP, 50 and 100 Hz interrupted), rectangular, exponential, triangular, Biphasic, Trabert, Faradics, drainage current Mid frequency: ■ Outputs: 2 ■ Frequency: 2,5 KHz to 20 KHz ■ IF bipolar, IF quadripolar, IF isoplanar, IF vectorial, MF of stimulation, Kotz, IF horyzontal ■ Graphic and coloured LCD with touch-screen ■ Pre-set programs with pictures ■ Free memories
