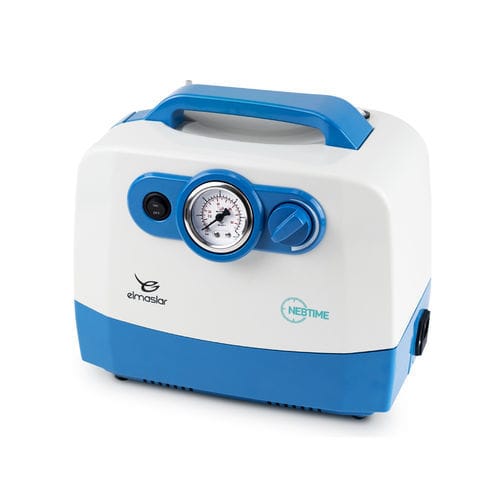

Electro-pneumatic nebulizer Nebtime CN03

for general purposestrolley-mountedcompact

This compact device was created to effectively deliver the medication prescribed by the doctor to the patient. It is suitable for continued use in hospital use. Thanks to its optional 3 outlets and individually adjustable apparatus, it provides simultaneous treatment to 3 patients. 24 Hours Continuous Use The product was created with hospitals in mind, and it may be used in a medical environment for up to 24 hours in a row. Outlet Pressure up to 6 Bar It provides pressure up to 6 bar thanks to its adjusting knob for patients who need high pressure. Drug Transfer to 3 Patients If needed, 1 device with its specially designed apparatus can be used on 3 patients without pressure loss. Low Cost Since 1 device allows the use of 3 patients, the cost of the device per patient is low. Technical Specifications Voltage 230 VAC ±%10, 50 Hz Power 100 W Medication Capacity 5 ml Particle Size 0,5 – 10 μm Maximum Medication Capacity 13 ml (cc) Average Nebulization Rate min 0,2 ml / min Compressor Pressure Range 30 ~ 36 PSI (max.)/BAR Operation Pressure Range 8 ~ 16 PSI/BAR Operating Temperature Range 10ºC ~ 40ºC Operating Humudity Rande 10 ~ 90 % RH
