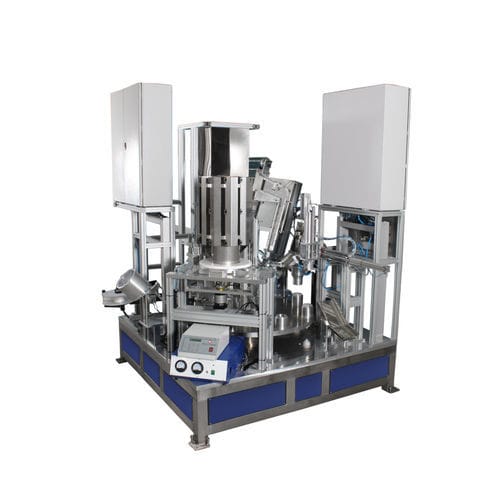

Dialysis concentrate production line 1602

automatic

EMCE package feeding conveyor is especially designed for filling sodium bicarbonate powder. İt works with minimum number of personnel while feeding empty packages to the line conveyor without any decrease on the capacity while feeding uninterruptedly and without any squeeze on the feeding conveyor which is fully synchronized with filling line conveyor via PLC synchronization automation. The capacity of feeding conveyor varies between 500 - 1000 units per hour. It is a full automatic dry system package cleaning machine and principally operates according to electropneumatic principles controlled by PLC A pressure system with six bar and vacuum pressure adjustable to max -0.5 bar. Solid articles dust or any foreign material which may have been stuck inside PVC, PET, or PE glass or tin packaging during transportation or pre –filling phase is removed by 6 bar hygienic dry air or -0.5 bar vacuum pressure. All pieces having contact with the product is made of AISI 304 SS profile. Lower chasis is made of St material with Epoxy paint on and is covered with AISI 304 SS profile and sheet material in accordance with GMP construction principles. it is commanded by an electro-pneumatic system the PLC command with electromagnetic clutch. The pieces of the system where the pieces are in direct contact with the product is made of AİSİ 304 SS, while the lower chassis is made of ST material coated with epoxy paint on and covered by AİSİ 304 SS profile and sheet material in accordance with GMP rules
