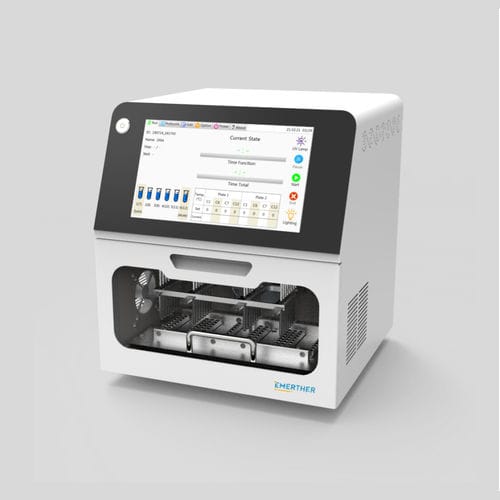

Clinical diagnostic nucleic acid extractor EmagPure-32A6

for medical researchcompactwith touchscreen

Robust, Compact, Convenient and Ultra-quiet Effective and versatile instrument for nucleic acid extraction from a variety of biological samples, with consistent performance Mechanism: Equipped with strong magnetic rods covered by disposable tip combs, which adsorb, transfer and release magnetic beads to achieve DNA/RNA extraction and purification procedures, with >99% magnetic bead recovery rate. 100% Automated and Simple Operation: Tear off aluminum cover of the plates prefilled with DNA/RNA extraction reagents, add sample, and start extraction Efficient Cross-contamination Control: Programmable UV disinfection and fan exhaust (side exhaust, rear exhaust, HEPA) Compact Design and Ultra Quiet: Only 35x34.5x40 cm, 17kg, save laboratory space, move around easily as needed; ultra low running sound Technical Parameters: Sample Throughput: 1-32 samples Sample Processing Volume: 20 - 1000 μL Processing Time: 10 - 45 min; depending on reagent type Plate Type: 2.2 mL 96-well plate Extraction Difference b/w Wells: CV < 5% External Ports: 4 standard USB, ethernet ports, support mouse, keyboard, and barcode scanner Disinfection: - UV disinfection, time can be set Mixing Mode: Slow, medium, fast (1-6 levels) Program Management: Programs can be created, edited, deleted, imported, etc. Temperature Control: Heating for lysis and elution steps (room temperature to 125°C) (optional copper heating module) Exhaust: Programmable fan exhaust (Optional side exhaust, rear exhaust, HEPA) Operation Interface: User-friendly graphical interface with 10-inch touchpad Power Supply: Input Voltage 100 - 240 VAC, 45-65 Hz
