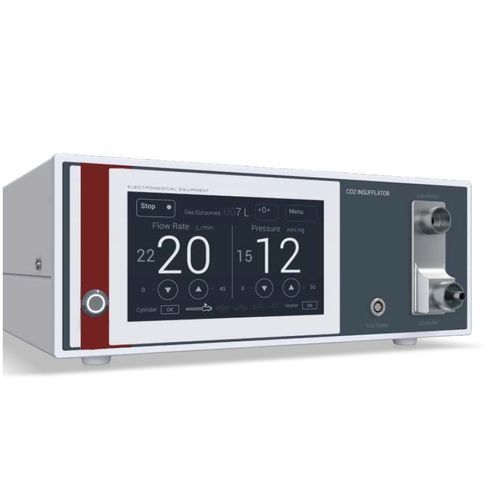

Adult endoscopy CO2 insufflator INS45HS

with smoke aspirator

– automatic computer-supported check on device soft- and hardware when turning the unit on – internal gas exsufflation valve is activated for automatic reduction of dangerous intraabdominal overpressure level of the body cavity, thus an optimized filling speed is achieved with fully automatic, situationrelated insufflation pressure values. A continuous gas flow provides a filling procedure with small pressure fluctuations in the body cavity and a high average insufflation performance Ergonomic design – big 7” TFT display gives a quick overview of the rated and actual values of gas pressure, gas flow,, alarms etc. – setting of the working parameters is made by touching controls on touchscreen multilanguage menu Performance – high flow rate capacity of 45 l/min quickly compensates for even big gas losses – insufflator’s Smart Continuous Flow algorithm ensures insufflation depending on the filling Gas heating – for eliminating of post-surgery problems, the insufflator is equipped with a highly efficient gas heating subsystem Smoke evacuation – evacuation of smoke and mist generated during electrosurgery, and ultrasonic procedures can be made by pressing the footswitch Gas supply – device can be used with gas bottles or central gas supply systems - input pressure range 4...100 bars
