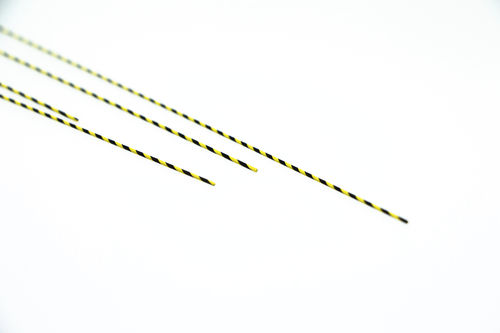

Angiography catheter guidewire

hydrophilichydrophobic

The guide-wire exists of a NiTi core wire, covered by an extruded PU coating or by a shrunk PTFE tube. The surface exhibits hydrophilic (hydrophobic) attributes. PU-extruded wires are well visible using X-rays over their whole length. PTFE coated wires have 5 cm long points visible under X-rays Ø - nominal diameter: standard 0.035 inch others on request F - flexible on one side flexible on two sides I - lengths in cm: 50, 60, 65, 70, 75, 80,100, 125, 150, 180, 300, 400, 460; Others on request J - tip: Standard 60°, others on reques Tolerance Lengths +/- 5 mm Diameter : +0/-0,03 mm Customer requiresments Besides our standards, we would be pleased to be your manufacturer when it comes to individual specifications and wishes To the newly developed surface finish the ENDOfala guide wire has particularly good sliding properties.The small contact surface considerably reduces the friction in the catherders and thus allows a precise and easy manipulation of the wire. The structure of the surface provides the wire with a particularly good grip, which enables sensitive work during application and minimizes wire slippage after fixation. Configuration Only the transport hose can be configured. This consists of PP or HDPE.. Accessories Accessories are the dispenser, including the tube and clips. This can include further details as a rinsing attachment (Luer) or Introducer.
