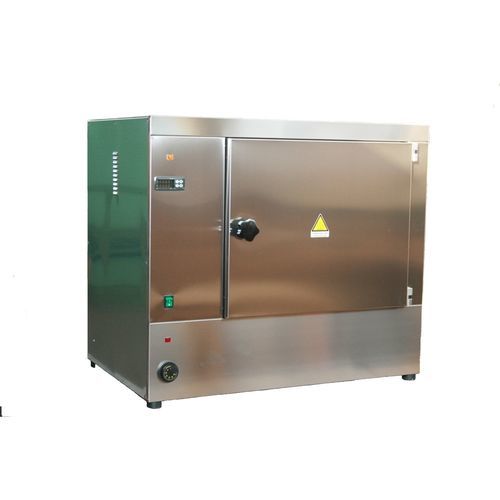

Thermostatic proofer SCN 40 DG

heat treatmentdryinglaboratory

The thermostatic ovens of our production can be used for multiple applications such as, for example, for dry sterilization cycles, for tests on materials (to test their resistance or verify any deformations) or for any other work that requires uniform heating. and accurate in temperature. Construction features Construction entirely in stainless steel: internal chamber in AISI 430, external structure in AISI 304 satin "Scotch-Brite" for maximum resistance to corrosion and ease of cleaning. Internal chamber with laminar air circulation and uniform heat diffusion ensured by two lateral convective compartments with perforated walls and by the positioning of the resistances in the heating pre-chamber. Insulation of adequate thickness completely in high quality mineral fiber. Insulated front door, one or two depending on the model, with expanded silicone rubber gasket. Perforated support shelves in AISI 430 stainless steel sheet, removable and positionable at different heights. Pass-through hole on the back for air / fumes exhaust and for any control thermometric probes (mod. SCN as standard) Height-adjustable non-slip rubber feet. Standard heat regulation equipment PID digital thermoregulator with autotuning with PT100 platinum probe Temperature range from + 10 ° C above the ambient temperature to + 250 ° C Resolution displayed in three digits (1 ° C), double display (set point, detected temperature) - (resolution at 0.1 ° C on request) Double overtemperature protection system as standard:
