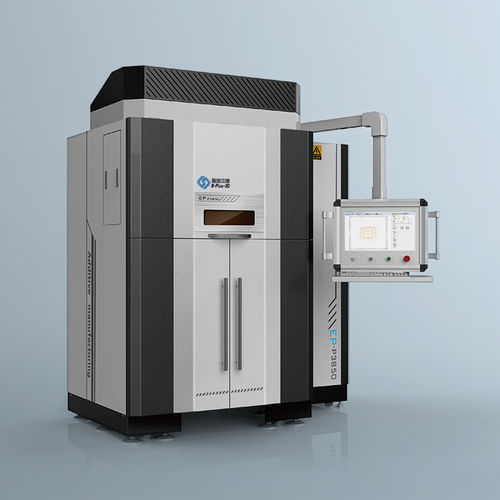

With Eplus3D polymer powder bed fusion(PPBF™) technology, EP-P3850 system is able to sinter polymer materials to produce functional test parts in small batches directly. The equipment adopts a removable forming cylinder design, which greatly improves production efficiency and reduces standby time of the equipment.
The forming cylinder of EP-P3850 is detachable which increases the manufacturing and sintering efficiency, and reduces the standby time of the machine.
The forming cylinder of EP-P3850 is detachable which increases the manufacturing and sintering efficiency, and reduces the standby time of the machine.
The Nylon printer can be widely applied in applications like mold making, automotive, and domestic appliance. Also the printed parts can be used to show creative display in culture, creative, costume and housewares etc.
Material - PA11, PA11CF, PA12, PA12GF
Build Volume - 380 x 380 x 500 mm³
Layer Thickness - 0.1 mm ( 0.08-0.3 mm to choose )
Build Accuracy - ±0.15mm ( part size ≤100mm ) , ±0.15% ( part size ≥100mm )
Material Feed Mode - Automatic loading, bi-directional powder feeding
Laser Power - CO₂ laser, 55 w
Scanning System - Dynamic scanning focus
Scanning Speed - 7.8 m/s (max)
OS System Support - Windows 7
Control Software - Eplus 3D printing software
