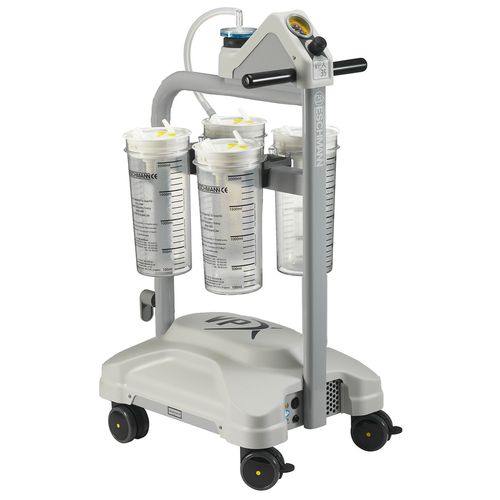

Pneumatic surgical suction pump VPX35

on casters

The VPX suction units are robust, simple to use, fully mobile and capable of achieving high flow rates. Also available in a pneumatic footswitch variant. Product Information Deliver a flow rate of >35 l/min Simple and intuitive to use Fully mobile for maximum flexibility Easy clean design ensuring infection control compliance Oil-free precision vacuum pump delivering accurate levels of suction Footswitch variants available Product includes disposable liners, which help to reduce the risk of cross-infection, and enable easy & safe disposal Controls, handles, jars & hydrophobic filter at a comfortable height for easy operation & mobility 2 locking front castors Technical Specifications Connectivity: Up to 4 jars Suction tube Internal Diameter: 6.35 mm Mains Voltage: 230 V Mains frequency: 50/60 Hz Power Consumption: 115 Watts Filter: Hydrophobic/bacterial filter Pump Type: 2-headed diaphragm pump Pump performance: Airflow rate (litres/min): 43 to 48 Vacuum (mmHg): 660 to 680 Vacuum (kPaG): 88 to 90.7 Duty Cycle: Continuous Dimensions (basic device): 365mm (w) x 495mm (l) x 875mm (h) Noise (during free flow): 69 dB Operating Temperatures: 5 - 45 degrees celsius Weight: 18kg Operating Conditions: - Operating temperature: 5°C to 40°C Pressure: 69kPa to 106kPa Humidity: 30% to 75% RH non-condensing Storage & Transport Environment: - Storage temperature: -30°C to 50°C Pressure: 69kPa to 106kPa Humidity: 30% to 90% RH non-condensing Protection Class (applied parts): - Type BF Protection Class (IEC 60601-1): - Class 1 Class of Risk (MDD - Medical Devices Directive) & MDR (Medical Device Regulations): - Class IIa
