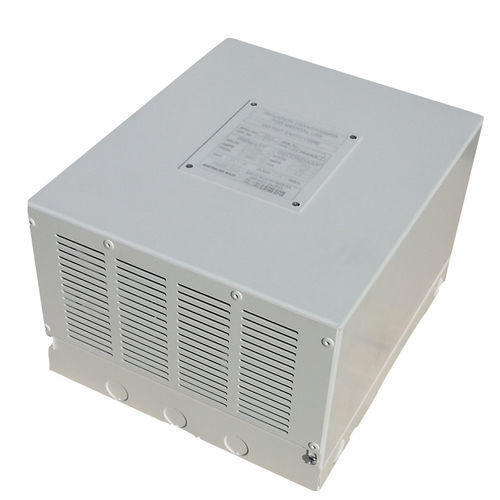

designed to work in conjunction with Line Isolation Monitors EI Series - Isolation Transformers for critical areas compliment the Vigilant range of Line Isolation & Overload Monitors for the best isolated power supply available.
Power supplies to Medical Treatment areas have special requirements that provide additional safety for patients particularly where a more direct electrical path to the heart may occur via catheters and probes
The normal AC power supply system is referenced to earth, that is current in the active or live conductor will flow to earth through any path that is not insulated
With an isolated power supply system the current available from the secondary winding of the Isolation Transformer is not earth seeking and as such will not flow from either of the active conductors to earth as long as the other active conductor is insulated from earth
For an isolated supply system to remain effective, constant monitoring is necessary to ensure that the hard wired part of the system, or more commonly, the equipment plugged into the system are providing a partial or full path to earth
Specifications
Power Input Voltage 230/240/250/260 VAC
Output Voltage240 VAC
Voltage Regulation3%
Frequency50/60Hz
Efficiency96%
