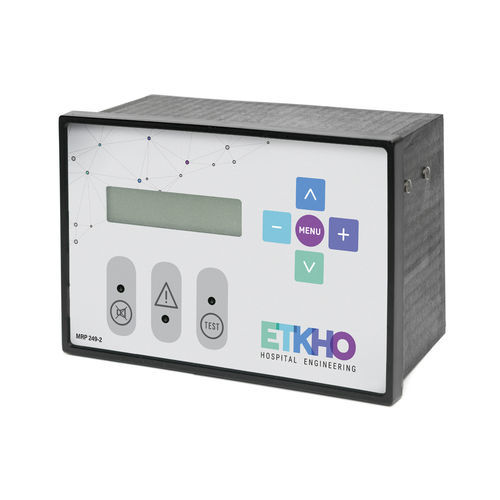

IEC 60364-7-710 insulation monitoring device ES 1000A

The medical insulation monitor continuously oversees the insulation resistance of IT medical systems. Insulated AC and/or AC/DC systems, emitting an alarm in the event of a fall in the value below a determined one. To obtain the measurement, the monitor is connected between the IT system and the grounding conductor (PE). The measurement current is overlapped on the monitored system and is assessed through a measurement circuit. MAIN CHARACTERISTICS Identification of insulation monitor MED Work method AC/DC insulated Signal monitoring Charge and temperature current of medical grade isolation transformer
