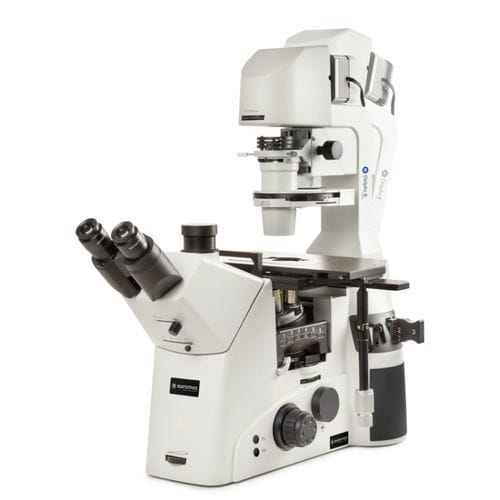

Inverted microscope Delphi-X

opticallaboratorytrinocular

Delphi-X Inverso™ is an inverted microscope for the professional with demanding applications of living cell cultures and stained samples. It is available in two configurations: • for phase contrast plus DIC (differential interference contrast) equipment • for fluorescence application Super contrast semi-apochromatic objectives with collar adjustment ring assure perfect observation of cells or tissues in 1.2 mm thick Petri dishes or flasks Highlights Life science applications Brightfield, phase contrast DIC (differential interference contrast) Long working distance IOS plan semi apochromatic objectives Revolving sextuple nosepiece 5 W LED or 100 W halogen transmitted illumination Backwards tilting condenser arm Easy placement of large objects Observation of tissue cultures, living cells EYEPIECES Pair of DIN HWF plan 10x/25 mm or 10x/22 mm eyepieces with diopter adjustment (optional) HEAD Trinocular 45° inclined tubes. Interpupillary distance of 47 to 78 mm. Trinocular head with 100-0, 80/20 and 0/100 positions NOSEPIECE Revolving sextuple nosepiece on ball-bearings. The nosepiece can be equipped with DIC prisms for the 10x, 20x and 40x objectives OBJECTIVES High numerical infinity semi-apochromatic long working distance plan phase Fluarex PLPHFi 10x/0.30, 20x/0.45, S40x/0.60 IOS objectives enable the sub-cellular structures. An optional 4x/0.13 and 60x/0.70 IOS objective is also available. The 20x, 40x and optional 60 objectives are equipped with collar adjustment ring for glass thicknesses from 0 to 1.2 mm
