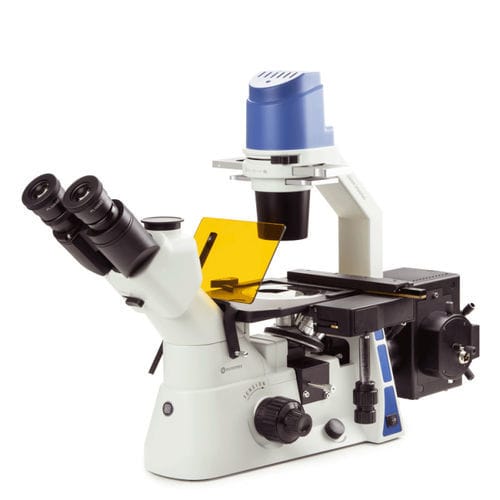

Inverted microscope Oxion

opticallaboratorybiological

The inverted Oxion Inverso biological microscopes of Euromex are available for bright field, phase contrast and fluorescence applications. Specific objectives compensate the 1.2 mm thick bottoms of the petri dishes or culture dishes The Oxion Inverso inverted microscopes (Life Science) are useful for observation of living organisms and tissues cultures in cell culture dishes and flasks Highlights Life Science applications Observation of tissue cultures, living cells Brightfield, phase contrast and fluorescence Long working distance IOS plan achromatic objectives Revolving quintuple nosepiece 5 W LED transmitted illumination EYEPIECES Pair of DIN HWF plan 10x/22 mm eyepieces HEADS • Trinocular 45° inclined tubes with extended low and high positions for eyepieces • One diopter adjustment on left eyepiece • Interpupillary distance of 54 to 75 mm • Trinocular head with 0-100 % positions NOSEPIECES Revolving quintuple nosepiece on ball-bearings OBJECTIVES FOR BRIGHTFIELD (models OX.2003-PL and OX.2053-PL) • Infinity color corrected long working distance plan 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives • An optional 60x/0.70 IOS objective is also available ILLUMINATION • Transmitted 5 W LED Intensity adjustable with internal 100-240 V power supply. Fuse holder 3.15 A / 250 V. • The fluorescence models are equipped with a reflected 100 W HBO mercury vapor light source with external 100-240 V power supply, fuse holder 3.15 A / 250 V, UV protection shield FILTERS FOR PHASE CONTRAST MODELS Interference filter 550 nm green and blue filter, 45 mm diameter
