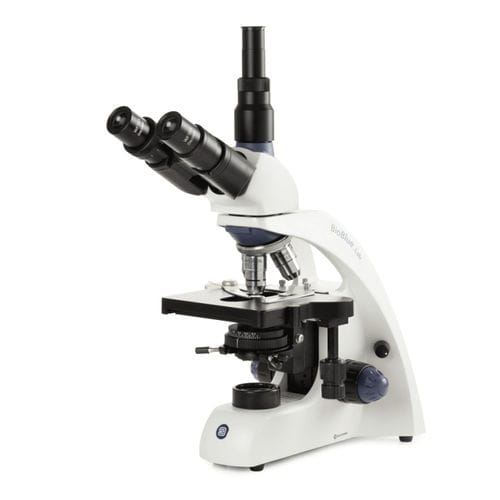

Optical microscope BioBlue.Lab

laboratoryuprighttrinocular

The BlueLine flagship BioBlue.Lab is an instrument that precisely matches highest expectations of microscopy users. These ergonomic easy-to-use microscopes have specifically been designed for educational and laboratory applications. The 150 x 140 mm stage with integrated rackless X-Y mechanical stage with 75 x 30 mm travel, provides a smooth translation of the specimen and highly precise positioning which is highky appreciated in most demanding cytology and histopathology applications All models are equipped with NeoLED illumination system and are available in binocular and trinocular versions Highlights Plan and plan IOS objectives Integrated mechanical stage Ergonomic carrying grip Finity and infinity optical system NeoLED™ illumination EYEPIECES Wide field WF 10x/20 mm eyepieces HEAD • Binocular and trinocular models have 30° inclined Ø 30 mm tubes • The interpupillary distance is adjustable between 48 to 75 mm • All models have a ±5 diopter adjustment on left tube • All heads are 360° rotatable and secured with a screw • The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image OBJECTIVES - 45 MM PARFOCAL • BioBlue.Lab microscopes are equipped with plan, plan IOS, plan phase and plan phase IOS objectives • Optional 20x/0.40 and S60x/0.85 objectives are also available • The S40x, S60x and S100x objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput FOCUSING • Coaxial coarse and fine adjustments with 200 graduations • Precision 1.5 μm per graduation, 0.3 mm per rotation
