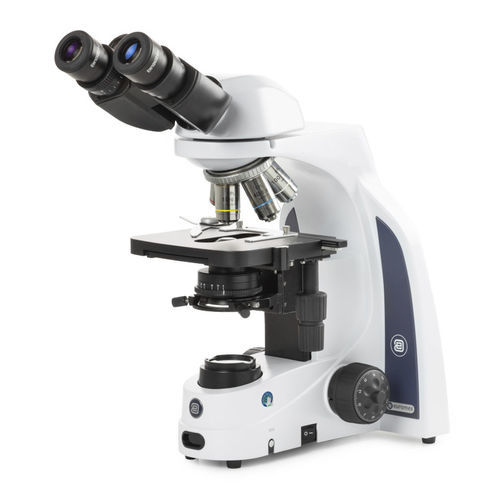

Phase contrast microscope iScope

opticallaboratorymedical

The iScope is available in various configurations suitable for Life and Biomedicial Sciences, high schools, universities but also for routine medical applications Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epi- illumination sources for fluorescence applications can be used. iScope models with multiheads are also available for teaching purposes Highlights EWF 10x/22 mm and EWF 10x/20 mm eyepieces Smart Light Control (SLC) system available Optional tilting head Plan, phase and darkfield illumination 3 W NeoLED™ Köhler illumination Provided with APL (Anti-bacterial Protection Layer) Medical device class I Multihead and face-to-face dual head systems Quintuple reversed nosepiece 187/230 x 140 mm rackless stage iCare sensor for energy saving CSS - Cable Storage System EYEPIECES • Extended Wide Field EWF plan 10x eyepieces with 20 mm field of view and adjustable diopter on the left eyepiece for finity corrected systems (Ø 23.2 mm tube. Tube length 160 mm) • Extended Wide Field HWF plan 10x eyepieces with 22 mm field of view and adjustable diopter on both eyepieces for infinity corrected IOS plan and plan phase systems and adjustable diopter on the left tube for EPLi systems (Ø 30 mm tube. Tube length 200 mm) HEAD • Binocular and trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm. ERGONOMICAL TILTING HEAD Optional ergonomic 5 to 35° tilting head, interpupillary distance 48-75 mm and optional photo attachment with standard Ø 23.2 mm tube (only infinity corrected models and not suitable for multi head systems)
