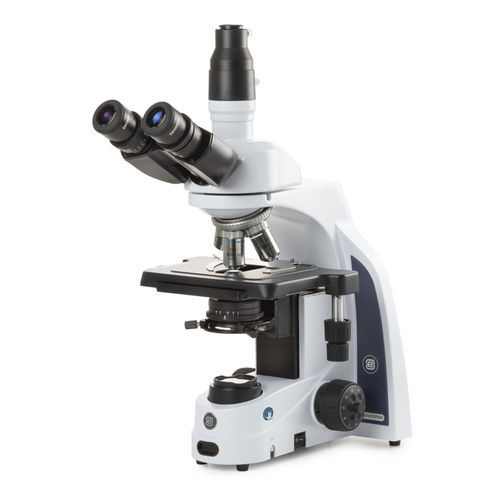

Phase contrast microscope iScope

opticallaboratorymedical

The iScope is available in various configurations suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epi- illumination sources for fluorescence applications can be used. iScope models with multi-heads are also available for teaching purposes Highlights EWF 10x/22 mm and EWF 10x/20 mm eyepieces Smart Light Control (SLC) system available Optional tilting head Plan, phase and darkfield illumination 3 W NeoLED™ Köhler illumination Provided with APL (Anti-bacterial Protection Layer) Medical device class I Multihead and face-to-face dual head systems Quintuple reversed nosepiece 187/230 x 140 mm rackless stage iCare sensor for energy saving CSS - Cable Storage System EYEPIECES • Extended Wide Field EWF plan 10x eyepieces with 20 mm field of view and adjustable diopter on the left eyepiece for finity corrected systems (Ø 23.2 mm tube. Tube length 160 mm) HEAD • The trinocular head of the Plan infinity corrected models (IS.1153-PLi) has an optical path selector (100:0 / 50:50) and ± 5 diopter adjustments on both Ø 30 mm tubes • The trinocular head of the E-Plan infinity corrected models (IS.1153-EPLi) has a fixed built-in beamsplitter (50:50) and ± 5 diopter adjustment on the Ø 30 mm left tube • The trinocular head of the E-plan finite models (IS.1153-EPL) has a fixed built-in 50:50 beamsplitter and one ± 5 diopter adjustment on the Ø 23.2 mm left tube
