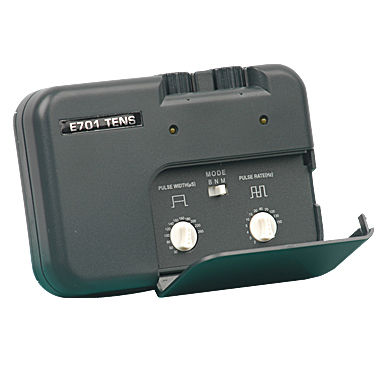

Electric stimulator E70x series
hand-heldTENS2-channel

Electric stimulator - E70x series - Everyway Medical Instruments Co., Ltd. - hand-held / TENS / 2-channel

Electric stimulator - E70x series - Everyway Medical Instruments Co., Ltd. - hand-held / TENS / 2-channel - image - 2

Electric stimulator - E70x series - Everyway Medical Instruments Co., Ltd. - hand-held / TENS / 2-channel - image - 3

Electric stimulator - E70x series - Everyway Medical Instruments Co., Ltd. - hand-held / TENS / 2-channel - image - 4

Electric stimulator - E70x series - Everyway Medical Instruments Co., Ltd. - hand-held / TENS / 2-channel - image - 5

Add to favorites

Compare this product

Characteristics

Type: electric stimulator
Ergonomics: hand-held
Type of electrical stimulation: TENS
Number of channels: 2-channel

Description

3/4 is a SD TENS unit that incorporates a wide variety of output combinations. It has five modes available: B(Burst), N(Normal), M(Pulse Rate Modulation), SD1(Pulse Duration Modulation) and SD2(Pulse Rate Modulation). Pulse rate, pulse duration and intensity are adjustable. Wide range of modulation modes ensures more effective treatment. A timer of 15, 30, 60 minutes(or 15, 30, Continue) is available. Horizontal type of design is more comfortable to wear on the belt. Channel: Dual, isolated between channels Pulse Amplitude: 0-80mA peak to peak into 500 ohm load. Pulse Rate: Adjustable, from 2Hz ~ 150 Hz Pulse Width: Adjustable, from 30 µs ~ 260 µs Mode: B, N, M, SD1, SD2 TIMER: Selectable, 15, 30, 60 Minutes Wave Form: Asymmetrical Bi-Phasic Square Pulse Voltage: 0-40 V peak into 500 ohm load Size: 70(H)X 103(W) X 23.5(T) mm
