Number of keys: 105
Protection: IP68
Activation force: - 1,2 N
Size: - 392 x 141 x 12mm
Operation temperature:-20 °C to +70 °C
Technical specification
Switching technology: - Carbon-on-Gold contact
Number of keys: - 105 (incl. 12 Function keys)
Protection: - IP68 (NEMA 4, 4X) - submersible
Key travel: - 1,25 mm
Activation force: - 1,2 N
Life: - >10 Mio. operations
Chassis: - Desktop
Power: - 12mA@5V (max. 200 mA backlight on)
Size: - 392 x 141 x 12 mm
Operation temperature: - -20 °C to +70 °C
Humidity: - to 100%
Shock: - 3x11 ms pulses (50g) each axes
Vibration: - 0,04g/Hz, 20Hz-2kHz, 3 hours
Certifications: - CE; FCC Class15, Part B; EN 60601-1-2
Features

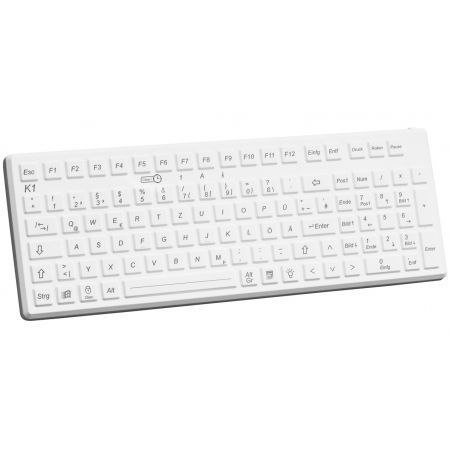

105 keys, including 12 function keys and number pad
Complete protection against dust and liquids according IP68 (submersible)
CleanRemind (operating time controlled cleaning/ disinfecting reminder)
no seams or crevices
LED-backlight (dimmable) for use in dark environment
Low profile key design for easy and efficient cleaning
Lock function to avoid unintended inputs during cleaning
Resistant against most common detergents and disinfection materials
Sterilized in seconds, no need for expensive sterilization methods
Silent low noise typing
Low force and precise feedback key technology
MS Windows keys
EMC tested according EN 60601-1-2
