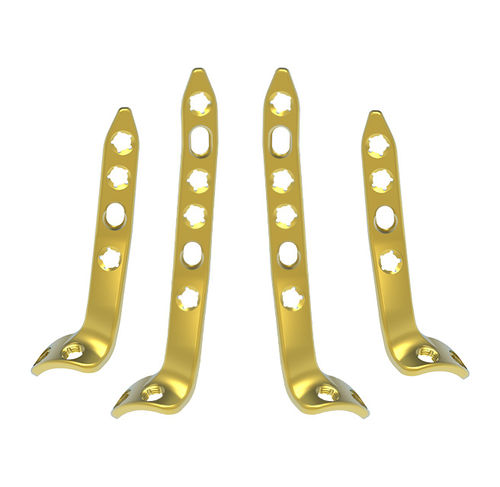

Ankle arthrodesis plate EPIC

anterolateralposterolaterallocking

the EPIC Extremity Ankle Fusion Plate System provides surgeons with versatile treatment options in a customizable tray. Surgeons can choose to use either cannulated screws, plates or a combination of cannulated screws and plates based on their patient’s specific needs. Key Features Complete anatomic titanium plate portfolio Right- and left-specific Multiple sizes and lengths Compression slots Low-profile plates with tapering thickness, max thickness at 3.5mm Headed and headless cannulated screws can also be used with the fusion system. 4.5mm variable locking and non-locking screws in lengths 16-40mm in 2mm increments, 45mm and 50mm 5.5mm variable locking and non-locking screws in lengths 26-50mm in 2mm increments, 55mm and 60mm
