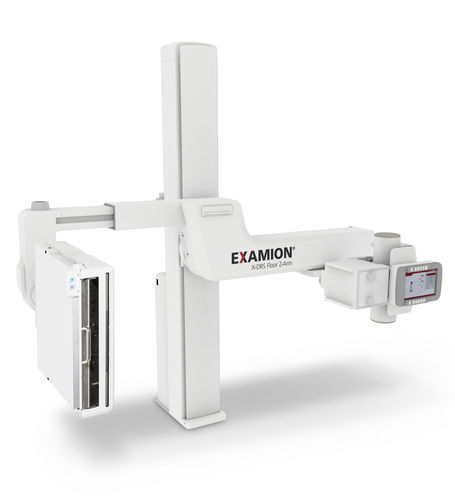

Radiography system X-DRS Z-Arm

digitalfor multipurpose radiographywithout table

The advanced X-DRS Floor Z-Arm swivel bracket system is designed specifically convenient operation and adjustment, and offers maximum physical support for X-ray system operators. The X-ray system is fully motorised - all movements can be carried out with motorised assistance. The X-DRS Floor Z-Arm is particularly useful if the X-ray system is in continuous use over longer periods of time, and especially if angled images need to be acquired. The swivel bracket can be positioned easily and effortlessly with the click of a button: Previously saved positions for the respective X-ray examination, including bucky tray rotation, can be selected from the touchscreen and positions for inclined images can also be saved. The fully motorised Z-Arm also offers a sophisticated stitching option for X-ray images: In this case the cross arm and the detector are rotated in such a way that all cone beams emanate from the same point of origin. This ensures optimal overlap of the individual images. Auto-positioning of the X-ray system according to system organ lists X-ray emitter and bucky tray are directly linked for accurate centering Lateral X-ray images: Lateral hip and spine imaging possible without rotation Stitching option: Automatic positioning for the required partial X-ray exposures Advantages of the X-DRS Floor Z-Arm Fully motorised X-ray system No mechanical movements requiring physical effort need to be performed Positioning at the push of a button Selection of previously saved positions on the touchscreen, including positions for angled images Compact design Suitable for the smallest X-ray rooms
