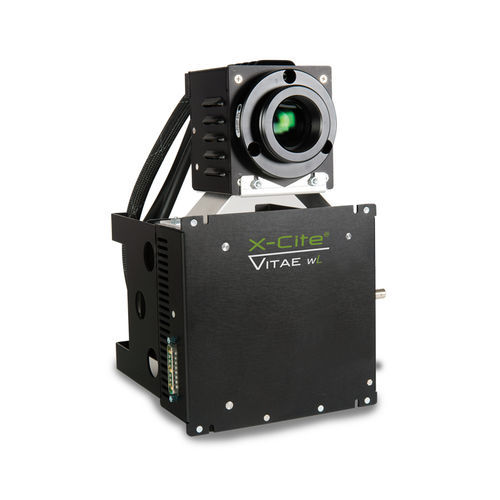

Excitation light source X-Cite Vitae™ wL

LEDfluorescent

The X-Cite Vitae™ wL is a white light fluorescence illuminator with usable wavelength range from 370-700 nm catering to a wide range of popular fluorophores and fluorescent proteins, including strong excitation for the traditionally challenging wavelengths. Coupling options are through a liquid light guide or via highly engineered direct coupling optics ensuring bright, uniform illumination without adding mechanical vibration. The X-Cite Vitae wL is available with an optional power supply and a small footprint to easily fit within an existing scanning system. Control is provided through TTL or USB. TECHNICAL SPECIFICATIONS Wavelength Range 370-700 nm Power Supply Universal input 100-240 VAC. 50/60 Hz Power Consumption 230 W LED ON/OFF Response Times 50 µs TTL; 1 ms USB Control Options TTL Compatible – BNC input RS-232 commands (SDK available) USB
