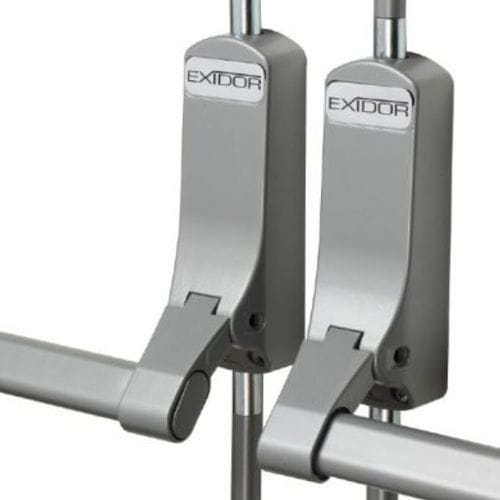

Hospital door lock Exidor 284

for laboratory doormechanicalstandard

Essential panic and exit hardware. Unit type: Panic unit Activation: Push bar Door type: Plain meeting stile double doorset Door opening: Outward Projection: 98mm from door face Mounting method: Surface-mounted bar No. of locking points: 4 locking points Bolt style: Shoot bolts (adjustable on 284A) Durability: 200,000 cycles Max door width: 1220mm, bar can be cut to size on site Max door height:2440mm Max door mass: Up to 200kg Operation: Pushing the bar down into the door face retracts the bolts. The bolts remain retracted until automatically released on closing of the door. Handing: Universal Finish: SIL or SSE (other finishes on request) Suitable for fire doors: Timber FD120, metal FD240 Combines two 294 units into a single set suitable for non-rebated double doors Push bar design easily cut to size to suit different door widths Microswitch option available Keeps available for alternative frame arrangements and aluminium doors Suited to most general purpose non-rebated double door applications, often found in industrial applications
