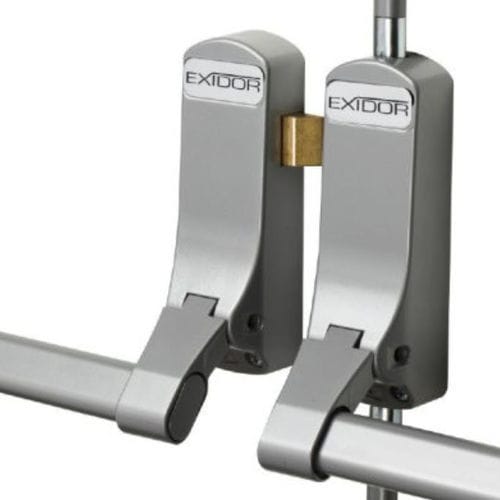

Hospital door lock Exidor 285

for lockerfor laboratory doorstandard

Essential panic and exit hardware. Unit type: Panic unit Activation: Push bar Door type: Rebated double doorset, latch on active leaf, and bolt-on inactive leaf Door opening: Outward Projection: 98mm from door face Mounting method: Surface mounted bar No. of locking points: 3 Bolt style: Active leaf: Single latch Inactive leaf: Shoot bolts Durability: 200,000 cycles Max door width: 1220mm, bar can be cut to size on site Max door mass: Up to 200kg Operation: Pushing the bar down into the door face retracts the latch or bolts. The bolts remain retracted until automatically released on closing of the door. Finish: SIL or SSE (other finishes on request) CE marked: Yes Suitable for fire doors: Timber FD120, metal FD240 Push bar design easily cut to size to suit different door widths Supplied with timber or steel door keeps and fixings Microswitch option available Keeps available for alternative frame arrangements and aluminium doors Ideal for most public space double doors such as shopping centres, schools and cinemas
