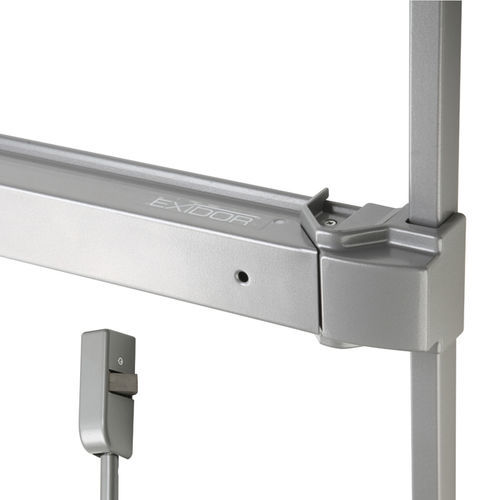

Hospital door lock Exidor 417

for lockerfor laboratory doormechanical

Unit type: Panic unit Activation: Touch bar Door type: Single doorset, Rebated double doorset, active leaf Door opening: Outward Projection: 62mm from door face Mounting method: Surface mounted bar No. of locking points: 2 Bolt style: Horizontal Pullman latches Durability: 200,000 cycles Max door width: 2 options of fixed bar length as standard, other sizes on request Max door mass: Up to 200kg Suitability: Suitable for door widths between 872mm to a maximum of 1200mm Operation: Pressing the bar into door face retracts the latches. Releasing the bar returns the latch bolts to the rest position Finish: SIL or SSE (other finishes on request) Accessories: See panic hardware accessory section for range of alternative keeps Suitable for fire doors: Timber FD120, metal FD240 Horizontal Pullman latches offers two point locking Microswitch, alarm and hold back dogging options Suitable for fire doors Supplied with keeps and fixings Keeps available for alternative frame arrangements
