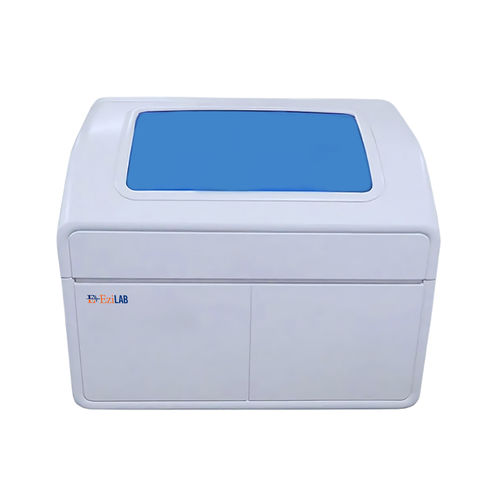

Automatic clinical chemistry analyzer EZL-CA101

for clinical diagnosticbenchtopwith STAT port

Auto Chemistry Analyzer EZL-CA101 is a bench top, fully automated chemistry analyzer with a throughput of 200 tests per hour. This is an ideal chemistry analyzer for low to mid volume hospitals and laboratories with an increased on board testing, reduced sample volume and easy operation for laboratories around the world. The user-friendly interface provides a long life platform for analytical excellence. This system includes standardized test menus, assay protocols, instrument processes and reference ranges that reduce operator variation and provide consistent quality results. Features Intelligent software High quality components Uninterrupted workflow Inventory management Cost effective operation Crash and collision detection Robust testing capabilities Efficient reagent and consumable use Simplify operations with user friendly graphical user interface design and touch-screen monitor Refrigerated tray with independent switch Specifications Reagent Cooling - Refrigerated tray with independent switch Cuvettes - 48 reusable cuvettes, optical length 6mm Mixed Probe - Independent stirring Stat Function - Yes Light Source - 6V/10W halogen lamp Spectrophotometry - Post-spectral spectrophotometry Calibration - Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 Quality Control - Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) Software - Windows 7/8/10, 32 or 64bit LIS System - Bi-direction, support HL7 protocol Interface - LAN port access Printer - External, multiple reporting mode available Temperature - 10 to 30°C Temperature Control - 37±0.1°C, real time monitor
