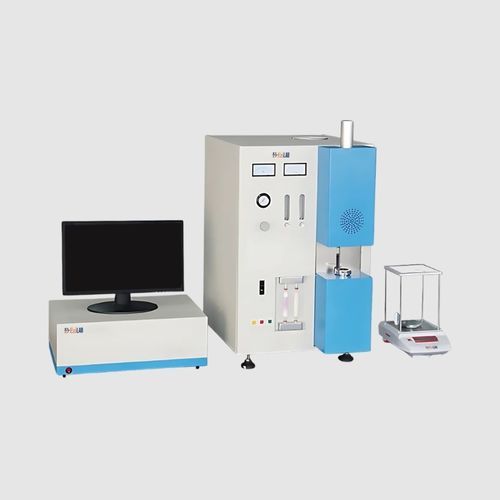

Carbon analyzer EZL-IA101

sulfurlaboratoryautomatic

IR Carbon Sulphur Analyzer EZL-IA101 is equipped with advanced infrared detectors for accurate measurement. Its high-speed 24-bit sampling ensures precise detection of carbon and sulfur content in samples. Provides rapid results in about 35 seconds, with an adjustable analysis time of 25 to 60 seconds. Our analyzer combines advanced technologies for enhanced performance and accuracy. Features Compatible with the WF-T88 furnace Real-time monitoring of carbon and sulfur curves Auto-cleaning and dust filtration Automated leakage detection Platinum IR light source Multifunctional and versatile Strong anti-interference capabilities Specifications Carbon Measurement Range - 0.0005% to 6.0000% (extendable to 99.999%) Sulfur Measurement Range - 0.0005% to 0.5000% (extendable to 99.999%) Carbon Analysis Precision - RSD <1% Sulfur Analysis Precision - RSD <1.5% Carbon Analysis Error - Conforms to ISO9556 standard Sulfur Analysis Error - Conforms to ISO4935 standard Time of Analysis - Adjustable from 25 to 60 seconds, typically around 35 seconds Minimum Reading Sensitivity - C/s 0.1 ppm Precision of Read - 0.0001 g Sample Standard Weight - 0.5 g Carbon Analysis Pool - One pool Sulfur Analysis Pool - One pool Working Temperature - 10 to 30 ℃ Relative Humidity - Less than 75% Power supply - AC220V ±5%, 50Hz ±2% Dimensions - 1380 × 760 × 980 mm Net Weight - 170 kg Gross Weight - 193 kg
